Perkins Agricultural RVI Bus, Truck turbo with Phaser 115Ti Engine
TB2558 452065-5003S 452065 2674A150, 5001826792
Specifiions:
| Part Number | 452065-5003S |
| Previous Version | 452065-0003, 452065-3 |
| OE number | 2674A150, 5001826792 |
| Year | 1993- |
| Description | Agricultural Phaser, RVI Bus, Truck |
| CHRA | 443854-0106 (443854-5106S) |
| Turbo Model | TB2558 |
| Engine | Phaser 115Ti |
| Engine Manufacturer | Perkins |
| Displacement | 3.99L, 3990 ccm, 4 Cylinders |
| KW | 100 |
| RPM Max | 2600 |
| Fuel | Diesel |
| Angle α (compressor housing) | 205� |
| Angle β (turbine housing) | 125� |
| Bearing Housing | 435349-0011 |
| Turbine Wheel | 435406-0004 |
| Comp. Wheel | 446335-0010 |
| Back plate | 432280-0001 |
| Heat shield Number | 443594-0001 |
| Repair Kit | 709143-0001 |
| Turbine Housing | 413567-0040 |
| Compressor Cover | 434288-0004 |
| Turbine Housing AR | 0.49 |
| Actuator | 432340-0043 |
| Settings Wastegate (pressure) | 1.450-1.520 bar |
| Settings Wastegate (lift rod) | 1.00 mm |
| Gasket (turbine inlet) | 210218 |
| Gasket (oil outlet) | 413709-0001 |
| Manufacturer | Honeywell-Garrett |
Appliions
1993-Perkins Agricultural with Phaser 115Ti Engine
1993- RVI Bus, Truck with Phaser 135Ti (T4-40) Euro-1 Perkins

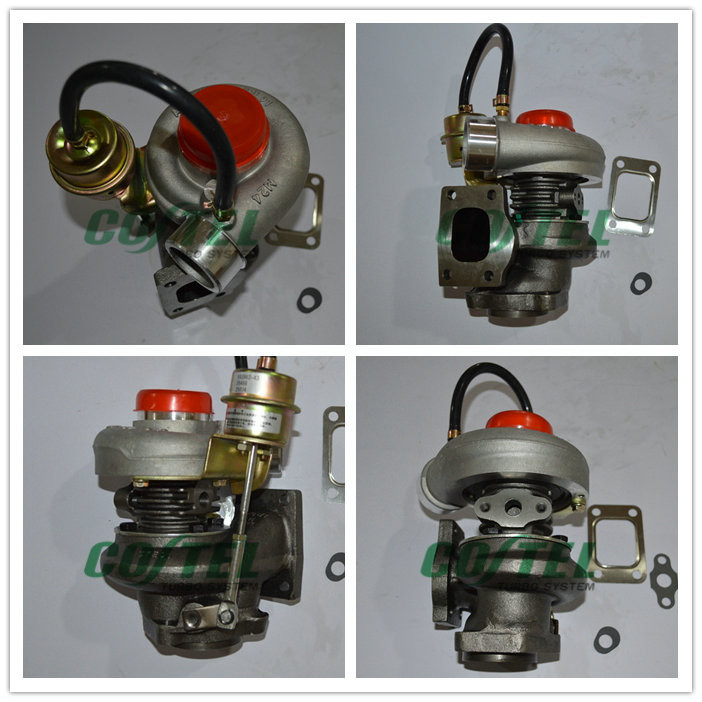

Pictures:
Contact:
Email/Skype:costelturbo@outlook.com
Shipping:
Depending on various circumstances, three different delivery
methods have been taken:
1 By sea. 2 By air cargo. 3 By express service.
Delivery term
Our extensive stock of turbochargers allows us to offer 3-7 working
day delivery service ensuring that you and your customer wait no
longer than is necessary.
50-150 pcs--15-20 days, 150-300 pcs--25 days, over 300 pcs -- 30
days.
COSTEL Complete Turbo
A.our products have 12 months warranty.
B.Product are manufactured to OE standards of quality
C.All wheels are processed on the Schenck automatic balancing centre
with air bearings to achieve lowest residual balance.
D.Cartridges are assemblied by automatic line, and are balanced with
Turbo Technics VSR or Schenck .
E.All VNT turbochargers are tested on the G3 VNT Flow Bench.
F.All turbochargers are supplied with gasket kits.
PRODUCTS coverage
- Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
- KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
- Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
- MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
- Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
- IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
- Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
