Volkswagen Commercial LT II VAN with TDI Engine GT2052V Turbo
454205-0006 454205
Specifiions:
| Part Number | 454205-5006S |
| Previous Version | 454205-0001, 454205-0006, 454205-7, 454205-6 |
| OE number | 074145701DV248, 074145701D, 074145701DX, 074145701DV |
| Year | 1999-06 |
| Description | Commercial |
| Fitted To Model | LT II van |
| CHRA | 434766-0024 (434766-5024S) |
| Turbo Model | GT2052V (S1) |
| Engine | TDI |
| Engine Manufacturer | VW |
| Displacement | 2.5L, 2461 ccm, 5 Cylinders |
| KW | 80/109 HP |
| RPM Max | 3500 |
| Fuel | Diesel |
| Angle α (compressor housing) | 79� |
| Angle β (turbine housing) | 0� |
| Bearing Housing | 700967-0006 NEW IN STOCK |
| Turbine Wheel | 434883-0033 NEW IN STOCK |
| Comp. Wheel | 436322-0018/436131-0003, 436131-0021, 705878-0017 NEW IN STOCK |
| Back plate | 701335-0006 NEW IN STOCK |
| Heat shield Number | 443768-0003 NEW IN STOCK |
| Repair Kit | N/A |
| Nozzle Ring Assembly | 700968-0004 |
| Turbine Housing | 701542-0001 |
| Compressor Cover | 704647-0001 |
| Turbine Housing AR | VNT1 |
| Actuator | 434855-0069 |
| Settings waste gate (pressure) | 0.040-0.120 bar |
| Settings Waste gate (lift shaft) | 0.2 mm |
| Gasket (turbine inlet) | 210586 |
| Gasket (turbine outlet) | 210227 |
| Gasket (oil outlet) | 210243 |
| Manufacturer | Honeywell-Garrett |
Appliions
1999-06 Volkswagen Commercial LT II VAN with TDI Engine

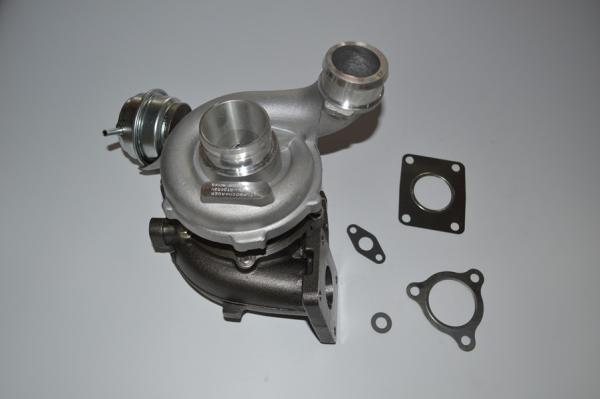

Pictures:
